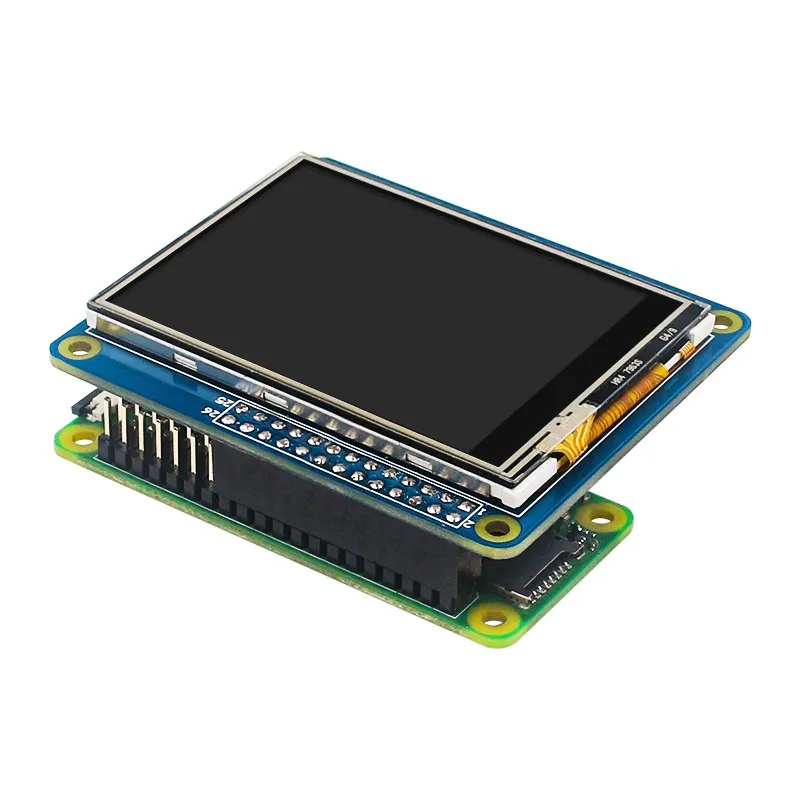

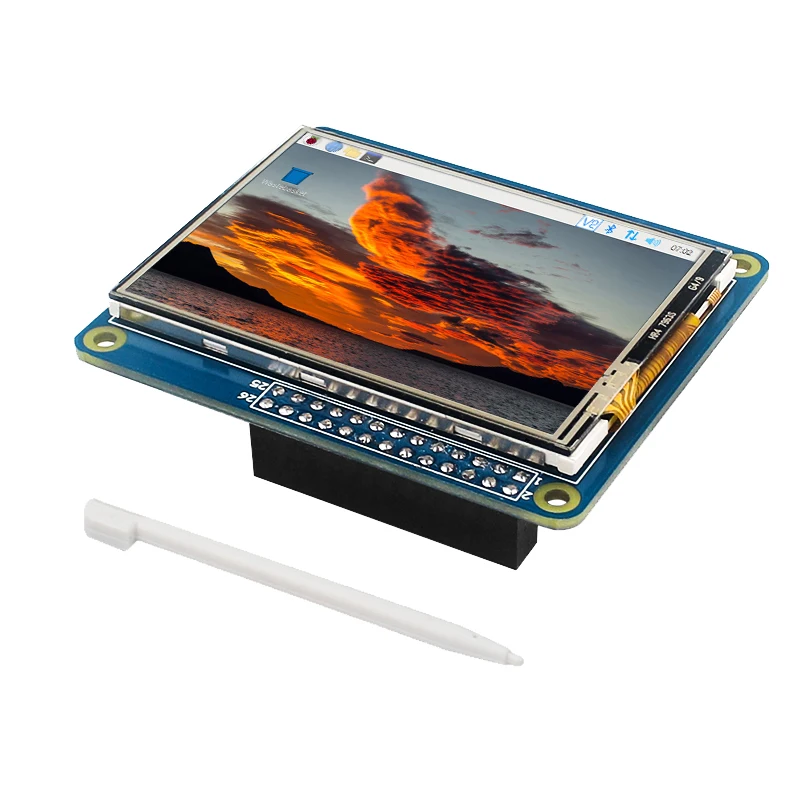

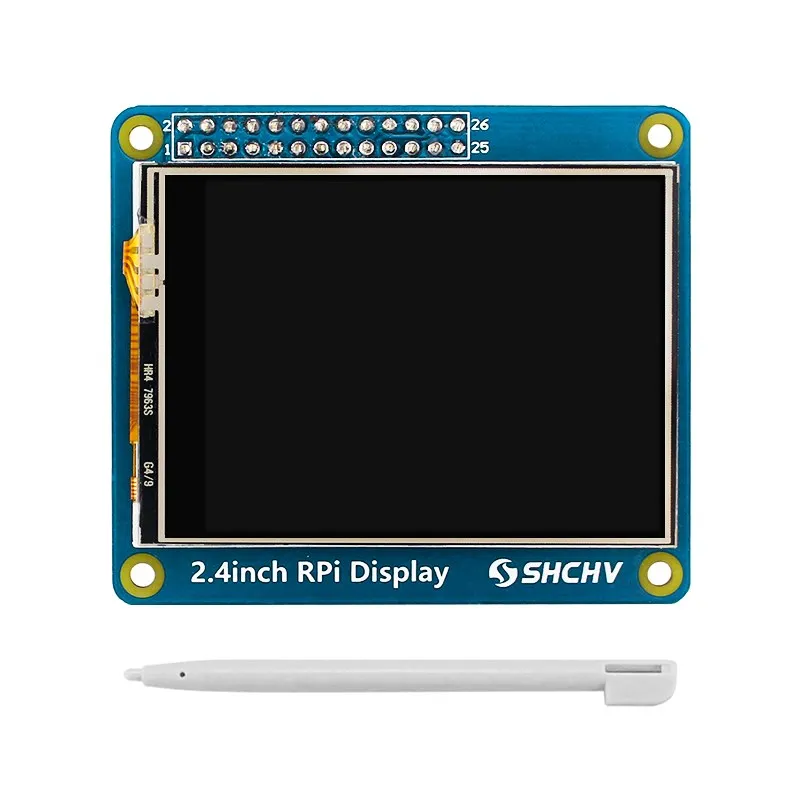

SHCHV 2.4 Inch Touch Screen for Raspberry Pi Zero 2 W 320x240 SPI Interface TFT Display for Pi 5 4B 3B+ 3B 3A+

Introduction

2.4 inch touh screen for Raspberry Pi with SPI inferface. Perfect size for Raspberry Pi Zero.

Features

1. 2.4inch standard display with physical resolution of 320×240
2. SPI interface with resistive touch screen for touch control
3. Perfectly compatible and can be directly inserted into any version of the Raspberry Pi (Raspberry Pi ZeroW, A, A+, B, B+, 2B, 3B, 3B+,4B,5)
4. Support for Raspbian/Ubuntu/Kali systems, Provide driver, image, and online wiki guidance documents

Specification

Screen Size: 2.4inch
LCD Type: TFT
Module Interface: SPI
Resolution: 320*240 (Pixel)
Active Area: 36.72x48.96(mm)
Touch Screen Controller: XPT2046
LCD Driver IC: ILI9341
Backlight: LED
Power Consumption: 0.08A*5V
Operating Temperature:（℃） -20~60

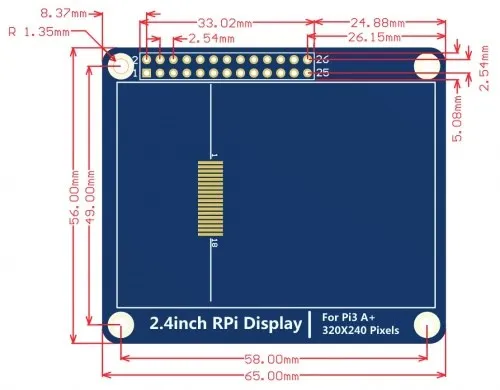

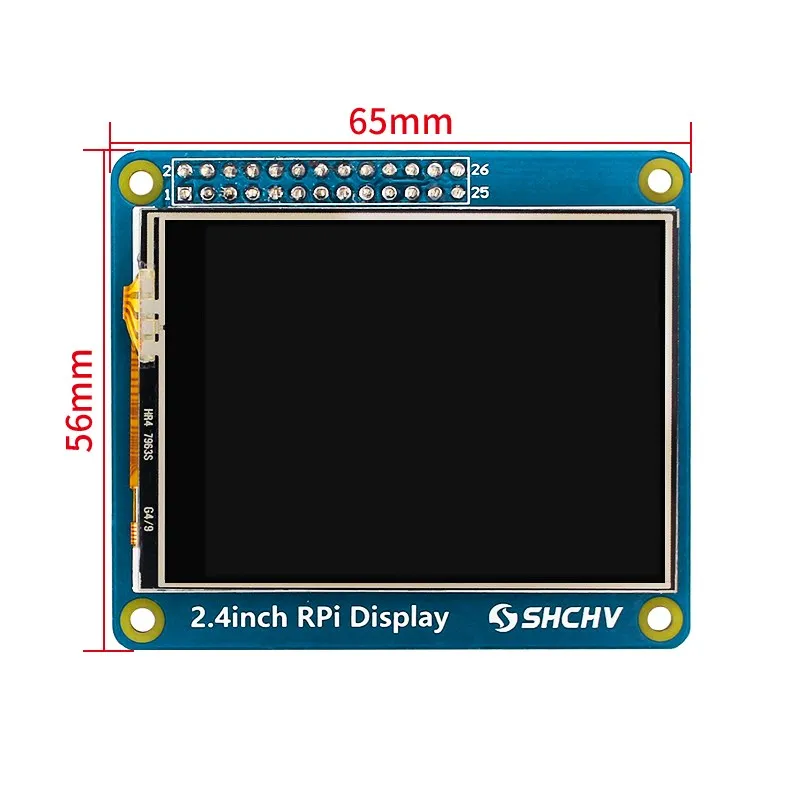

Module PCB Size: 56.00x65.00(mm)

How to Use

Please refer to:
http://www.lcdwiki.com/2.4inch_RPi_Display_For_RPi_3A+
